Product Name:
Specification: 3.2*350mm, 4.0*400mm
Delivery Time:15 days
Payment Term: TT or LC
Enquire NowZ408
Accord with：GB/T 10044 EZNiFe-1
Equivalent norm: AWS A5.15 ENiFe-C1
Description:

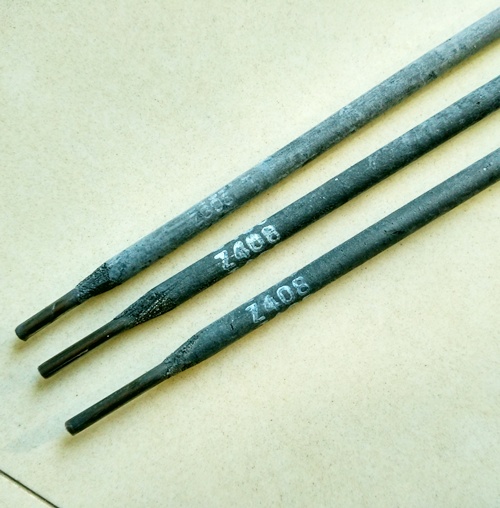

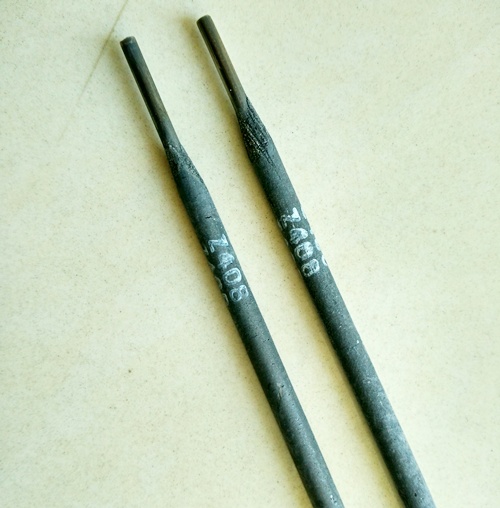

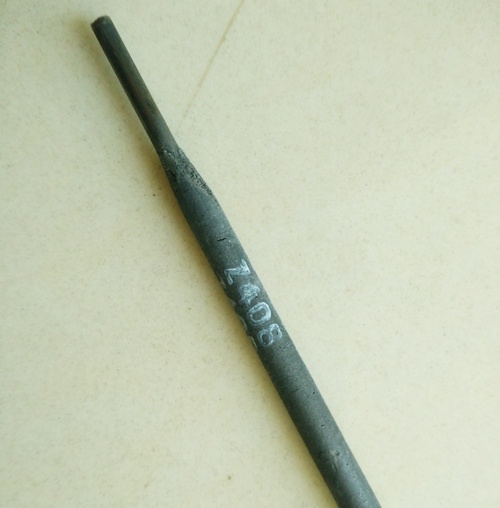

Z408 cast iron welding electrode is a graphitic (with strong reducing) type coating with Ni/Fe core welding electrodes for cast iron. It has features as follows: high toughness, excellent plasticity, low linear expansion coefficient, etc. Both AC and DC can be applied with welding.
Applications:
It is used for repairing welding important and high toughness parts made of cast iron and modular iron, such as cylinder head, motor stand, gear wheel, etc.
Chemical Composition of Deposited Metal: (%)
C | Mn | Si | S | Ni | Fe | Al | Cu | |
Standard | ≤2.0 | ≤2.5 | ≤4.0 | ≤0.03 | 45-60 | The rest | ≤1.0 | ≤2.50 |
Typical | 0.70 | 0.24 | 1.00 | 0.006 | 54 | 0.06 | 0.054 | 0.054 |
Recommended Current (AC or DC)
Size(mm) | 2.5*300 | 3.2*350 | 4.0*400 | 5.0*400 |
Current(A) | 50-80 | 80-110 | 110-140 | 150-180 |
Attention:
a. welding electrodes must be baked for 1 hour at the temperature of 150℃ before welding.
b. Small current is the best to be adopted.
