Product Name:
Specification: 2.5*300MM, 3.2*350MM
Delivery Time:10 days
Payment Term: T/T or L/C
Inquire NowDescription:

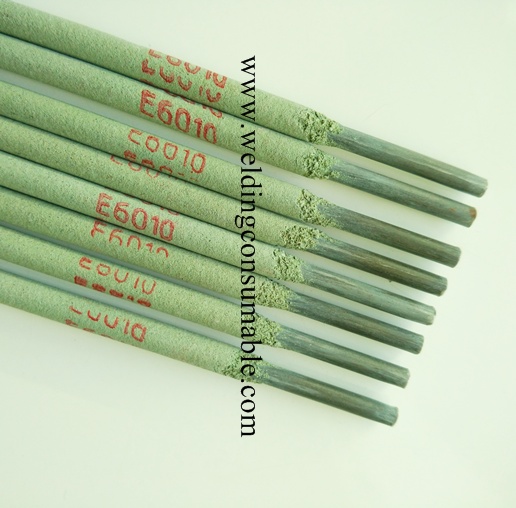

E6010 Welding Electrode is a sodium coating electrode specially used in DC. With advanced productive technology, our E6010 has strong arc penetrating power, little welding slag, easy deslagging, efficient welding and good welding lines. It has good properties of vertical up and down welding at various positions. It applies sing welding shaping two sides technology.
Application:
It is mainly used in carbon steel pipes and other materials of the same type, backing welding of structure bottom and filler welding and cosmetic welding.
Chemical Composition of Deposited Metal (%)
| Chemical Composition | C | Mn | Si | S | P |
| Guarantee Value | ≤0.10 | 0.3-0.6 | ≤0.25 | ≤0.035 | ≤0.040 |
Recommended Welding Currents:
| Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 5.8 |
| Length(mm) | 300 | 300 | 350 | 400 | 400 | 400 |
| Welding Current(A) | 40-70 | 60-90 | 80-130 | 150-190 | 180-250 | 220-280 |
Mechanical Properties of Deposited Metal:
| AWS A5.1-04 | Rm(Mpa) | Rel(Mpa) | A(%) | AKV(J) | ℃ |
| E6010 | ≥460 | ≥340 | ≥25 | 40-90 | -29 |
Attention:
The rods easily get wet, please keep try.
When package is broken, or rods are damp, please dry the rods in 70-80℃ for 0.5-1 hour.
Please take high thrust and small electric current for the better welding properties while using 5.0 rods.
